`pygad.nn` Module¶

This section of the PyGAD’s library documentation discusses the pygad.nn module.

Using the pygad.nn module, artificial neural networks are created. The purpose of this module is to only implement the forward pass of a neural network without using a training algorithm. The pygad.nn module builds the network layers, implements the activations functions, trains the network, makes predictions, and more.

Later, the pygad.gann module is used to train the pygad.nn network using the genetic algorithm built in the pygad module.

Starting from PyGAD 2.7.1, the pygad.nn module supports both classification and regression problems. For more information, check the problem_type parameter in the pygad.nn.train() and pygad.nn.predict() functions.

Supported Layers¶

Each layer supported by the pygad.nn module has a corresponding class. The layers and their classes are:

Input: Implemented using the pygad.nn.InputLayer class.
Dense (Fully Connected): Implemented using the pygad.nn.DenseLayer class.

In the future, more layers will be added. The next subsections discuss such layers.

`pygad.nn.InputLayer` Class¶

The pygad.nn.InputLayer class creates the input layer for the neural network. For each network, there is only a single input layer. The network architecture must start with an input layer.

This class has no methods or class attributes. All it has is a constructor that accepts a parameter named num_neurons representing the number of neurons in the input layer.

An instance attribute named num_neurons is created within the constructor to keep such a number. Here is an example of building an input layer with 20 neurons.

input_layer = pygad.nn.InputLayer(num_neurons=20)

Here is how the single attribute num_neurons within the instance of the pygad.nn.InputLayer class can be accessed.

num_input_neurons = input_layer.num_neurons

print("Number of input neurons =", num_input_neurons)

This is everything about the input layer.

`pygad.nn.DenseLayer` Class¶

Using the pygad.nn.DenseLayer class, dense (fully-connected) layers can be created. To create a dense layer, just create a new instance of the class. The constructor accepts the following parameters:

num_neurons: Number of neurons in the dense layer.
previous_layer: A reference to the previous layer. Using the previous_layer attribute, a linked list is created that connects all network layers.
activation_function: A string representing the activation function to be used in this layer. Defaults to "sigmoid". Currently, the supported values for the activation functions are "sigmoid", "relu", "softmax" (supported in PyGAD 2.3.0 and higher), and "None" (supported in PyGAD 2.7.0 and higher). When a layer has its activation function set to "None", then it means no activation function is applied. For a regression problem, set the activation function of the output (last) layer to "None". If all outputs in the regression problem are nonnegative, then it is possible to use the ReLU function in the output layer.

Within the constructor, the accepted parameters are used as instance attributes. Besides the parameters, some new instance attributes are created which are:

initial_weights: The initial weights for the dense layer.
trained_weights: The trained weights of the dense layer. This attribute is initialized by the value in the initial_weights attribute.

Here is an example for creating a dense layer with 12 neurons. Note that the previous_layer parameter is assigned to the input layer input_layer.

dense_layer = pygad.nn.DenseLayer(num_neurons=12,
                                  previous_layer=input_layer,
                                  activation_function="relu")

Here is how to access some attributes in the dense layer:

num_dense_neurons = dense_layer.num_neurons
dense_initail_weights = dense_layer.initial_weights

print("Number of dense layer attributes =", num_dense_neurons)
print("Initial weights of the dense layer :", dense_initail_weights)

Because dense_layer holds a reference to the input layer, then the number of input neurons can be accessed.

input_layer = dense_layer.previous_layer
num_input_neurons = input_layer.num_neurons

print("Number of input neurons =", num_input_neurons)

Here is another dense layer. This dense layer’s previous_layer attribute points to the previously created dense layer.

dense_layer2 = pygad.nn.DenseLayer(num_neurons=5,
                                   previous_layer=dense_layer,
                                   activation_function="relu")

Because dense_layer2 holds a reference to dense_layer in its previous_layer attribute, then the number of neurons in dense_layer can be accessed.

dense_layer = dense_layer2.previous_layer
dense_layer_neurons = dense_layer.num_neurons

print("Number of dense neurons =", num_input_neurons)

After getting the reference to dense_layer, we can use it to access the number of input neurons.

dense_layer = dense_layer2.previous_layer
input_layer = dense_layer.previous_layer
num_input_neurons = input_layer.num_neurons

print("Number of input neurons =", num_input_neurons)

Assuming that dense_layer2 is the last dense layer, then it is regarded as the output layer.

`previous_layer` Attribute¶

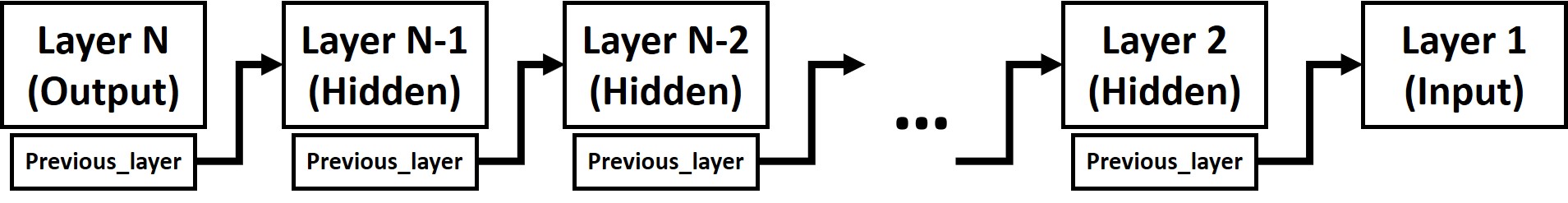

The previous_layer attribute in the pygad.nn.DenseLayer class creates a one way linked list between all the layers in the network architecture as described by the next figure.

The last (output) layer indexed N points to layer N-1, layer N-1 points to the layer N-2, the layer N-2 points to the layer N-3, and so on until reaching the end of the linked list which is layer 1 (input layer).

The one way linked list allows returning all properties of all layers in the network architecture by just passing the last layer in the network. The linked list moves from the output layer towards the input layer.

Using the previous_layer attribute of layer N, the layer N-1 can be accessed. Using the previous_layer attribute of layer N-1, layer N-2 can be accessed. The process continues until reaching a layer that does not have a previous_layer attribute (which is the input layer).

The properties of the layers include the weights (initial or trained), activation functions, and more. Here is how a while loop is used to iterate through all the layers. The while loop stops only when the current layer does not have a previous_layer attribute. This layer is the input layer.

layer = dense_layer2

while "previous_layer" in layer.__init__.__code__.co_varnames:
    print("Number of neurons =", layer.num_neurons)

    # Go to the previous layer.
    layer = layer.previous_layer

Functions to Manipulate Neural Networks¶

There are a number of functions existing in the pygad.nn module that helps to manipulate the neural network.

`pygad.nn.layers_weights()`¶

Creates and returns a list holding the weights matrices of all layers in the neural network.

Accepts the following parameters:

last_layer: A reference to the last (output) layer in the network architecture.
initial: When True (default), the function returns the initial weights of the layers using the layers’ initial_weights attribute. When False, it returns the trained weights of the layers using the layers’ trained_weights attribute. The initial weights are only needed before network training starts. The trained weights are needed to predict the network outputs.

The function uses a while loop to iterate through the layers using their previous_layer attribute. For each layer, either the initial weights or the trained weights are returned based on where the initial parameter is True or False.

`pygad.nn.layers_weights_as_vector()`¶

Creates and returns a list holding the weights vectors of all layers in the neural network. The weights array of each layer is reshaped to get a vector.

This function is similar to the layers_weights() function except that it returns the weights of each layer as a vector, not as an array.

Accepts the following parameters:

last_layer: A reference to the last (output) layer in the network architecture.
initial: When True (default), the function returns the initial weights of the layers using the layers’ initial_weights attribute. When False, it returns the trained weights of the layers using the layers’ trained_weights attribute. The initial weights are only needed before network training starts. The trained weights are needed to predict the network outputs.

The function uses a while loop to iterate through the layers using their previous_layer attribute. For each layer, either the initial weights or the trained weights are returned based on where the initial parameter is True or False.

`pygad.nn.layers_weights_as_matrix()`¶

Converts the network weights from vectors to matrices.

Compared to the layers_weights_as_vectors() function that only accepts a reference to the last layer and returns the network weights as vectors, this function accepts a reference to the last layer in addition to a list holding the weights as vectors. Such vectors are converted into matrices.

Accepts the following parameters:

last_layer: A reference to the last (output) layer in the network architecture.
vector_weights: The network weights as vectors where the weights of each layer form a single vector.

The function uses a while loop to iterate through the layers using their previous_layer attribute. For each layer, the shape of its weights array is returned. This shape is used to reshape the weights vector of the layer into a matrix.

`pygad.nn.layers_activations()`¶

Creates and returns a list holding the names of the activation functions of all layers in the neural network.

Accepts the following parameter:

last_layer: A reference to the last (output) layer in the network architecture.

The function uses a while loop to iterate through the layers using their previous_layer attribute. For each layer, the name of the activation function used is returned using the layer’s activation_function attribute.

`pygad.nn.sigmoid()`¶

Applies the sigmoid function and returns its result.

Accepts the following parameters:

sop: The input to which the sigmoid function is applied.

`pygad.nn.relu()`¶

Applies the rectified linear unit (ReLU) function and returns its result.

Accepts the following parameters:

sop: The input to which the relu function is applied.

`pygad.nn.softmax()`¶

Applies the softmax function and returns its result.

Accepts the following parameters:

sop: The input to which the softmax function is applied.

`pygad.nn.train()`¶

Trains the neural network.

Accepts the following parameters:

num_epochs: Number of epochs.
last_layer: Reference to the last (output) layer in the network architecture.
data_inputs: Data features.
data_outputs: Data outputs.
problem_type: The type of the problem which can be either "classification" or "regression". Added in PyGAD 2.7.0 and higher.
learning_rate: Learning rate.

For each epoch, all the data samples are fed to the network to return their predictions. After each epoch, the weights are updated using only the learning rate. No learning algorithm is used because the purpose of this project is to only build the forward pass of training a neural network.

`pygad.nn.update_weights()`¶

Calculates and returns the updated weights. Even no training algorithm is used in this project, the weights are updated using the learning rate. It is not the best way to update the weights but it is better than keeping it as it is by making some small changes to the weights.

Accepts the following parameters:

weights: The current weights of the network.
network_error: The network error.
learning_rate: The learning rate.

`pygad.nn.update_layers_trained_weights()`¶

After the network weights are trained, this function updates the trained_weights attribute of each layer by the weights calculated after passing all the epochs (such weights are passed in the final_weights parameter)

By just passing a reference to the last layer in the network (i.e. output layer) in addition to the final weights, this function updates the trained_weights attribute of all layers.

Accepts the following parameters:

last_layer: A reference to the last (output) layer in the network architecture.
final_weights: An array of weights of all layers in the network after passing through all the epochs.

The function uses a while loop to iterate through the layers using their previous_layer attribute. For each layer, its trained_weights attribute is assigned the weights of the layer from the final_weights parameter.

`pygad.nn.predict()`¶

Uses the trained weights for predicting the samples’ outputs. It returns a list of the predicted outputs for all samples.

Accepts the following parameters:

last_layer: A reference to the last (output) layer in the network architecture.
data_inputs: Data features.
problem_type: The type of the problem which can be either "classification" or "regression". Added in PyGAD 2.7.0 and higher.

All the data samples are fed to the network to return their predictions.

Helper Functions¶

There are functions in the pygad.nn module that does not directly manipulate the neural networks.

`pygad.nn.to_vector()`¶

Converts a passed NumPy array (of any dimensionality) to its array parameter into a 1D vector and returns the vector.

Accepts the following parameters:

array: The NumPy array to be converted into a 1D vector.

`pygad.nn.to_array()`¶

Converts a passed vector to its vector parameter into a NumPy array and returns the array.

Accepts the following parameters:

vector: The 1D vector to be converted into an array.
shape: The target shape of the array.

Supported Activation Functions¶

The supported activation functions are:

Sigmoid: Implemented using the pygad.nn.sigmoid() function.
Rectified Linear Unit (ReLU): Implemented using the pygad.nn.relu() function.
Softmax: Implemented using the pygad.nn.softmax() function.

Steps to Build a Neural Network¶

This section discusses how to use the pygad.nn module for building a neural network. The summary of the steps are as follows:

Reading the Data
Building the Network Architecture
Training the Network
Making Predictions
Calculating Some Statistics

Reading the Data¶

Before building the network architecture, the first thing to do is to prepare the data that will be used for training the network.

In this example, 4 classes of the Fruits360 dataset are used for preparing the training data. The 4 classes are:

Apple Braeburn: This class’s data is available at https://github.com/ahmedfgad/NumPyANN/tree/master/apple
Lemon Meyer: This class’s data is available at https://github.com/ahmedfgad/NumPyANN/tree/master/lemon
Mango: This class’s data is available at https://github.com/ahmedfgad/NumPyANN/tree/master/mango
Raspberry: This class’s data is available at https://github.com/ahmedfgad/NumPyANN/tree/master/raspberry

The features from such 4 classes are extracted according to the next code. This code reads the raw images of the 4 classes of the dataset, prepares the features and the outputs as NumPy arrays, and saves the arrays in 2 files.

This code extracts a feature vector from each image representing the color histogram of the HSV space’s hue channel.

import numpy
import skimage.io, skimage.color, skimage.feature
import os

fruits = ["apple", "raspberry", "mango", "lemon"]
# Number of samples in the datset used = 492+490+490+490=1,962
# 360 is the length of the feature vector.
dataset_features = numpy.zeros(shape=(1962, 360))
outputs = numpy.zeros(shape=(1962))

idx = 0
class_label = 0
for fruit_dir in fruits:
    curr_dir = os.path.join(os.path.sep, fruit_dir)
    all_imgs = os.listdir(os.getcwd()+curr_dir)
    for img_file in all_imgs:
        if img_file.endswith(".jpg"): # Ensures reading only JPG files.
            fruit_data = skimage.io.imread(fname=os.path.sep.join([os.getcwd(), curr_dir, img_file]), as_gray=False)
            fruit_data_hsv = skimage.color.rgb2hsv(rgb=fruit_data)
            hist = numpy.histogram(a=fruit_data_hsv[:, :, 0], bins=360)
            dataset_features[idx, :] = hist[0]
            outputs[idx] = class_label
            idx = idx + 1
    class_label = class_label + 1

# Saving the extracted features and the outputs as NumPy files.
numpy.save("dataset_features.npy", dataset_features)
numpy.save("outputs.npy", outputs)

To save your time, the training data is already prepared and 2 files created by the next code are available for download at these links:

dataset_features.npy: The features https://github.com/ahmedfgad/NumPyANN/blob/master/dataset_features.npy
outputs.npy: The class labels https://github.com/ahmedfgad/NumPyANN/blob/master/outputs.npy

The outputs.npy file gives the following labels for the 4 classes:

Apple Braeburn: Class label is 0
Lemon Meyer: Class label is 1
Mango: Class label is 2
Raspberry: Class label is 3

The project has 4 folders holding the images for the 4 classes.

After the 2 files are created, then just read them to return the NumPy arrays according to the next 2 lines:

data_inputs = numpy.load("dataset_features.npy")
data_outputs = numpy.load("outputs.npy")

After the data is prepared, next is to create the network architecture.

Building the Network Architecture¶

The input layer is created by instantiating the pygad.nn.InputLayer class according to the next code. A network can only have a single input layer.

import pygad.nn
num_inputs = data_inputs.shape[1]

input_layer = pygad.nn.InputLayer(num_inputs)

After the input layer is created, next is to create a number of dense layers according to the next code. Normally, the last dense layer is regarded as the output layer. Note that the output layer has a number of neurons equal to the number of classes in the dataset which is 4.

hidden_layer = pygad.nn.DenseLayer(num_neurons=HL2_neurons, previous_layer=input_layer, activation_function="relu")
output_layer = pygad.nn.DenseLayer(num_neurons=4, previous_layer=hidden_layer2, activation_function="softmax")

After both the data and the network architecture are prepared, the next step is to train the network.

Training the Network¶

Here is an example of using the pygad.nn.train() function.

pygad.nn.train(num_epochs=10,
               last_layer=output_layer,
               data_inputs=data_inputs,
               data_outputs=data_outputs,
               learning_rate=0.01)

After training the network, the next step is to make predictions.

Making Predictions¶

The pygad.nn.predict() function uses the trained network for making predictions. Here is an example.

predictions = pygad.nn.predict(last_layer=output_layer, data_inputs=data_inputs)

It is not expected to have high accuracy in the predictions because no training algorithm is used.

Calculating Some Statistics¶

Based on the predictions the network made, some statistics can be calculated such as the number of correct and wrong predictions in addition to the classification accuracy.

num_wrong = numpy.where(predictions != data_outputs)[0]
num_correct = data_outputs.size - num_wrong.size
accuracy = 100 * (num_correct/data_outputs.size)
print(f"Number of correct classifications : {num_correct}.")
print(f"Number of wrong classifications : {num_wrong.size}.")
print(f"Classification accuracy : {accuracy}.")

It is very important to note that it is not expected that the classification accuracy is high because no training algorithm is used. Please check the documentation of the pygad.gann module for training the network using the genetic algorithm.

Examples¶

This section gives the complete code of some examples that build neural networks using pygad.nn. Each subsection builds a different network.

XOR Classification¶

This is an example of building a network with 1 hidden layer with 2 neurons for building a network that simulates the XOR logic gate. Because the XOR problem has 2 classes (0 and 1), then the output layer has 2 neurons, one for each class.

import numpy
import pygad.nn

# Preparing the NumPy array of the inputs.
data_inputs = numpy.array([[1, 1],
                           [1, 0],
                           [0, 1],
                           [0, 0]])

# Preparing the NumPy array of the outputs.
data_outputs = numpy.array([0,
                            1,
                            1,
                            0])

# The number of inputs (i.e. feature vector length) per sample
num_inputs = data_inputs.shape[1]
# Number of outputs per sample
num_outputs = 2

HL1_neurons = 2

# Building the network architecture.
input_layer = pygad.nn.InputLayer(num_inputs)
hidden_layer1 = pygad.nn.DenseLayer(num_neurons=HL1_neurons, previous_layer=input_layer, activation_function="relu")
output_layer = pygad.nn.DenseLayer(num_neurons=num_outputs, previous_layer=hidden_layer1, activation_function="softmax")

# Training the network.
pygad.nn.train(num_epochs=10,
               last_layer=output_layer,
               data_inputs=data_inputs,
               data_outputs=data_outputs,
               learning_rate=0.01)

# Using the trained network for predictions.
predictions = pygad.nn.predict(last_layer=output_layer, data_inputs=data_inputs)

# Calculating some statistics
num_wrong = numpy.where(predictions != data_outputs)[0]
num_correct = data_outputs.size - num_wrong.size
accuracy = 100 * (num_correct/data_outputs.size)
print(f"Number of correct classifications : {num_correct}.")
print(f"Number of wrong classifications : {num_wrong.size}.")
print(f"Classification accuracy : {accuracy}.")

Image Classification¶

This example is discussed in the Steps to Build a Neural Network section and its complete code is listed below.

Remember to either download or create the dataset_features.npy and outputs.npy files before running this code.

import numpy
import pygad.nn

# Reading the data features. Check the 'extract_features.py' script for extracting the features & preparing the outputs of the dataset.
data_inputs = numpy.load("dataset_features.npy") # Download from https://github.com/ahmedfgad/NumPyANN/blob/master/dataset_features.npy

# Optional step for filtering the features using the standard deviation.
features_STDs = numpy.std(a=data_inputs, axis=0)
data_inputs = data_inputs[:, features_STDs > 50]

# Reading the data outputs. Check the 'extract_features.py' script for extracting the features & preparing the outputs of the dataset.
data_outputs = numpy.load("outputs.npy") # Download from https://github.com/ahmedfgad/NumPyANN/blob/master/outputs.npy

# The number of inputs (i.e. feature vector length) per sample
num_inputs = data_inputs.shape[1]
# Number of outputs per sample
num_outputs = 4

HL1_neurons = 150
HL2_neurons = 60

# Building the network architecture.
input_layer = pygad.nn.InputLayer(num_inputs)
hidden_layer1 = pygad.nn.DenseLayer(num_neurons=HL1_neurons, previous_layer=input_layer, activation_function="relu")
hidden_layer2 = pygad.nn.DenseLayer(num_neurons=HL2_neurons, previous_layer=hidden_layer1, activation_function="relu")
output_layer = pygad.nn.DenseLayer(num_neurons=num_outputs, previous_layer=hidden_layer2, activation_function="softmax")

# Training the network.
pygad.nn.train(num_epochs=10,
               last_layer=output_layer,
               data_inputs=data_inputs,
               data_outputs=data_outputs,
               learning_rate=0.01)

# Using the trained network for predictions.
predictions = pygad.nn.predict(last_layer=output_layer, data_inputs=data_inputs)

# Calculating some statistics
num_wrong = numpy.where(predictions != data_outputs)[0]
num_correct = data_outputs.size - num_wrong.size
accuracy = 100 * (num_correct/data_outputs.size)
print(f"Number of correct classifications : {num_correct}.")
print(f"Number of wrong classifications : {num_wrong.size}.")
print(f"Classification accuracy : {accuracy}.")

Regression Example 1¶

The next code listing builds a neural network for regression. Here is what to do to make the code works for regression:

Set the problem_type parameter in the pygad.nn.train() and pygad.nn.predict() functions to the string "regression".

pygad.nn.train(...,
               problem_type="regression")

predictions = pygad.nn.predict(...,
                               problem_type="regression")

Set the activation function for the output layer to the string "None".

output_layer = pygad.nn.DenseLayer(num_neurons=num_outputs, previous_layer=hidden_layer1, activation_function="None")

Calculate the prediction error according to your preferred error function. Here is how the mean absolute error is calculated.

abs_error = numpy.mean(numpy.abs(predictions - data_outputs))
print(f"Absolute error : {abs_error}.")

Here is the complete code. Yet, there is no algorithm used to train the network and thus the network is expected to give bad results. Later, the pygad.gann module is used to train either a regression or classification networks.

import numpy
import pygad.nn

# Preparing the NumPy array of the inputs.
data_inputs = numpy.array([[2, 5, -3, 0.1],
                           [8, 15, 20, 13]])

# Preparing the NumPy array of the outputs.
data_outputs = numpy.array([0.1,
                            1.5])

# The number of inputs (i.e. feature vector length) per sample
num_inputs = data_inputs.shape[1]
# Number of outputs per sample
num_outputs = 1

HL1_neurons = 2

# Building the network architecture.
input_layer = pygad.nn.InputLayer(num_inputs)
hidden_layer1 = pygad.nn.DenseLayer(num_neurons=HL1_neurons, previous_layer=input_layer, activation_function="relu")
output_layer = pygad.nn.DenseLayer(num_neurons=num_outputs, previous_layer=hidden_layer1, activation_function="None")

# Training the network.
pygad.nn.train(num_epochs=100,
               last_layer=output_layer,
               data_inputs=data_inputs,
               data_outputs=data_outputs,
               learning_rate=0.01,
               problem_type="regression")

# Using the trained network for predictions.
predictions = pygad.nn.predict(last_layer=output_layer,
                         data_inputs=data_inputs,
                         problem_type="regression")

# Calculating some statistics
abs_error = numpy.mean(numpy.abs(predictions - data_outputs))
print(f"Absolute error : {abs_error}.")

Regression Example 2 - Fish Weight Prediction¶

This example uses the Fish Market Dataset available at Kaggle (https://www.kaggle.com/aungpyaeap/fish-market). Simply download the CSV dataset from this link (https://www.kaggle.com/aungpyaeap/fish-market/download). The dataset is also available at the GitHub project of the pygad.nn module: https://github.com/ahmedfgad/NumPyANN

Using the Pandas library, the dataset is read using the read_csv() function.

data = numpy.array(pandas.read_csv("Fish.csv"))

The last 5 columns in the dataset are used as inputs and the Weight column is used as output.

# Preparing the NumPy array of the inputs.
data_inputs = numpy.asarray(data[:, 2:], dtype=numpy.float32)

# Preparing the NumPy array of the outputs.
data_outputs = numpy.asarray(data[:, 1], dtype=numpy.float32) # Fish Weight

Note how the activation function at the last layer is set to "None". Moreover, the problem_type parameter in the pygad.nn.train() and pygad.nn.predict() functions is set to "regression".

After the pygad.nn.train() function completes, the mean absolute error is calculated.

abs_error = numpy.mean(numpy.abs(predictions - data_outputs))
print(f"Absolute error : {abs_error}.")

Here is the complete code.

import numpy
import pygad.nn
import pandas

data = numpy.array(pandas.read_csv("Fish.csv"))

# Preparing the NumPy array of the inputs.
data_inputs = numpy.asarray(data[:, 2:], dtype=numpy.float32)

# Preparing the NumPy array of the outputs.
data_outputs = numpy.asarray(data[:, 1], dtype=numpy.float32) # Fish Weight

# The number of inputs (i.e. feature vector length) per sample
num_inputs = data_inputs.shape[1]
# Number of outputs per sample
num_outputs = 1

HL1_neurons = 2

# Building the network architecture.
input_layer = pygad.nn.InputLayer(num_inputs)
hidden_layer1 = pygad.nn.DenseLayer(num_neurons=HL1_neurons, previous_layer=input_layer, activation_function="relu")
output_layer = pygad.nn.DenseLayer(num_neurons=num_outputs, previous_layer=hidden_layer1, activation_function="None")

# Training the network.
pygad.nn.train(num_epochs=100,
               last_layer=output_layer,
               data_inputs=data_inputs,
               data_outputs=data_outputs,
               learning_rate=0.01,
               problem_type="regression")

# Using the trained network for predictions.
predictions = pygad.nn.predict(last_layer=output_layer,
                         data_inputs=data_inputs,
                         problem_type="regression")

# Calculating some statistics
abs_error = numpy.mean(numpy.abs(predictions - data_outputs))
print(f"Absolute error : {abs_error}.")

`pygad.nn` Module¶

Supported Layers¶

`pygad.nn.InputLayer` Class¶

`pygad.nn.DenseLayer` Class¶

`previous_layer` Attribute¶

Functions to Manipulate Neural Networks¶

`pygad.nn.layers_weights()`¶

`pygad.nn.layers_weights_as_vector()`¶

`pygad.nn.layers_weights_as_matrix()`¶

`pygad.nn.layers_activations()`¶

`pygad.nn.sigmoid()`¶

`pygad.nn.relu()`¶

`pygad.nn.softmax()`¶

`pygad.nn.train()`¶

`pygad.nn.update_weights()`¶

`pygad.nn.update_layers_trained_weights()`¶

`pygad.nn.predict()`¶

Helper Functions¶

`pygad.nn.to_vector()`¶

`pygad.nn.to_array()`¶

Supported Activation Functions¶

Steps to Build a Neural Network¶

Reading the Data¶

Building the Network Architecture¶

Training the Network¶

Making Predictions¶

Calculating Some Statistics¶

Examples¶

XOR Classification¶

Image Classification¶

Regression Example 1¶

Regression Example 2 - Fish Weight Prediction¶

PyGAD

Navigation

Related Topics

pygad.nn Module¶

Supported Layers¶

pygad.nn.InputLayer Class¶

pygad.nn.DenseLayer Class¶

previous_layer Attribute¶

Functions to Manipulate Neural Networks¶

pygad.nn.layers_weights()¶

pygad.nn.layers_weights_as_vector()¶

pygad.nn.layers_weights_as_matrix()¶

pygad.nn.layers_activations()¶

pygad.nn.sigmoid()¶

pygad.nn.relu()¶

pygad.nn.softmax()¶

pygad.nn.train()¶

pygad.nn.update_weights()¶

pygad.nn.update_layers_trained_weights()¶

pygad.nn.predict()¶

Helper Functions¶

pygad.nn.to_vector()¶

pygad.nn.to_array()¶

Supported Activation Functions¶

Steps to Build a Neural Network¶

Reading the Data¶

Building the Network Architecture¶

Training the Network¶

Making Predictions¶

Calculating Some Statistics¶

Examples¶

XOR Classification¶

Image Classification¶

Regression Example 1¶

Regression Example 2 - Fish Weight Prediction¶

`pygad.nn` Module¶

`pygad.nn.InputLayer` Class¶

`pygad.nn.DenseLayer` Class¶

`previous_layer` Attribute¶

`pygad.nn.layers_weights()`¶

`pygad.nn.layers_weights_as_vector()`¶

`pygad.nn.layers_weights_as_matrix()`¶

`pygad.nn.layers_activations()`¶

`pygad.nn.sigmoid()`¶

`pygad.nn.relu()`¶

`pygad.nn.softmax()`¶

`pygad.nn.train()`¶

`pygad.nn.update_weights()`¶

`pygad.nn.update_layers_trained_weights()`¶

`pygad.nn.predict()`¶

`pygad.nn.to_vector()`¶

`pygad.nn.to_array()`¶
